PRODUCTS
Total EMC / Thermal Products
IDCF Series

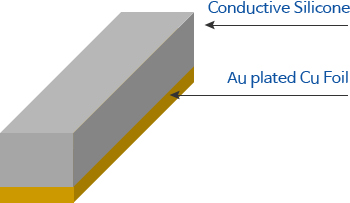

Structure and Features
IDCF is recently developed by DSIC from SMD
Finger Strip for the use PCB featuring excellent resilience and electrical properties.
Specifications
| Item | Test Method | Properties | |
|---|---|---|---|
| Material description | Base Material | - | Conductive Silicone & Au plated Cu |
| Color | Visual | Black/Dark gray/Gray | |
| Service Temp (℃) | Internal Test method | 280 | |
| Service Temp. (℃) | Internal Test method | - 40 ~ + 120 | |
| Electric Resistance (Ω) | Origin | HIOKI 3540 mΩ HITESTER | Max. 1.0 |
| Temp. & Humi. (50℃/95%RH) | Max. 1.0 | ||
| Salt Spray | Max. 1.0 | ||
| Thermal Shock | Max. 1.0 | ||
| Standard Size (mm) | Width | Digital Calipers | Order Size |
| Height | |||
| Length | |||
| PCB Adhesion Strength (gf/mm) | Push Pull Gauge Speed : 0.5mm/sec |
Length: Min. 150gf / Width: Min. 200gf |
|
| Compression-Deflection Rate (%) | 20% Compression, 10,000회 | Min. 95 | |
| 30% Compression, 48hr | Min. 90 | ||
| Flammability | UL 94 | UL 94-V1 | |
| RoHS & Halogen Free | Pb, Cd, Hg, Cr+6, PBBs, PBDEs, Br, Cl | N.D. | |
How to Order
P/N :
IDCF
1
-
AAA
2
-
BBB
3
T -
CCC
4
-
DDD
5
-
EEE
6
-
FFF
7
-
1Serial Number
2None : Hard Type , C : Soft Type
3Height (mm)
4Conductive Silicone Type : SC
Non Conductive Silicone Type : GS (Gap Supporter) -
5Width (mm)
6Length (mm)
7G : Au Plated Cu Foil
- [ For Example ]
-
IDCF-0.7T-SC-2.5-1-G
Hard Type
Width : 2.5mm
Height : 0.7mm
Length : 1mm
Type : G
IDCF-C-0.4T-SC-2-1-GSoft Type
Width : 2mm
Height : 0.4mm
Length : 1mm
Type : G
